Installing software on top of EESSI¶

EESSI is sometimes described as "container without a container runtime". What that means is that it effectively provides an alternative operating system to the native one without the need for something to negotiate between the two. When we are consuming software from EESSI, there is no real way to see this. It is only when we try to use EESSI as a basis for building new sotware that we are exposed to the additional complexity that this can bring.

Building a software project¶

Let us use a demonstrator software project to explore this topic. The purpose of the demonstrator is to allow us to follow a reasonably common workflow when it comes to building software in a new resource/environment:

• Gather the dependencies we need for our project to build.
• Build the project.
• Ensure the final software works as intended.

The demonstrator project¶

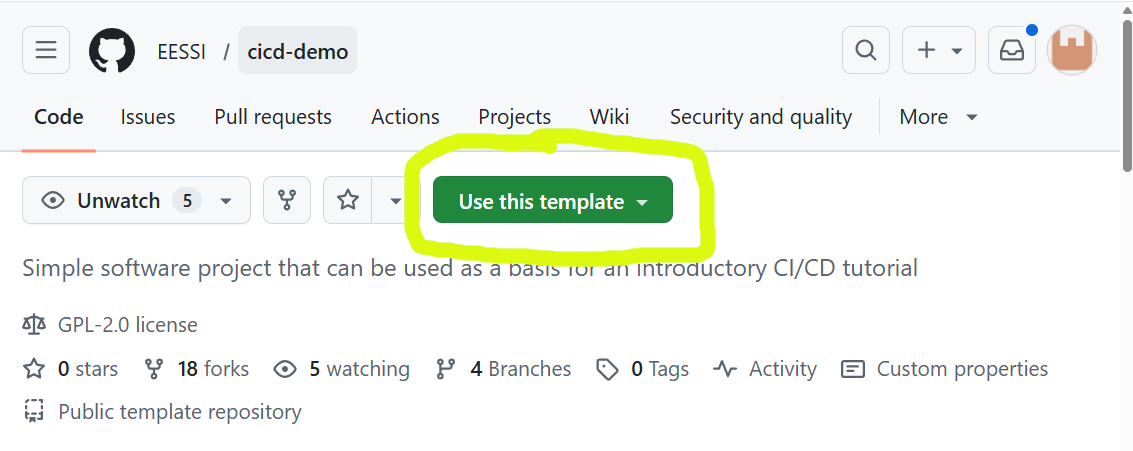

We have prepared a template for a demonstrator project that can be used throughout this tutorial. The first step is to make your instance of the project from the template, for this you need to click on the link https://github.com/new?template_name=cicd-demo&template_owner=EESSI which will open a new webpage from GitHub from which you can select where you would like to create the project. You can also get to this page through the GitHub interface:

Once GitHub has created a project for you from the template, you can clone the project to the local resource that you wish to use (your laptop, a cluster,...) by copying the relevant command from the GitHub interface:

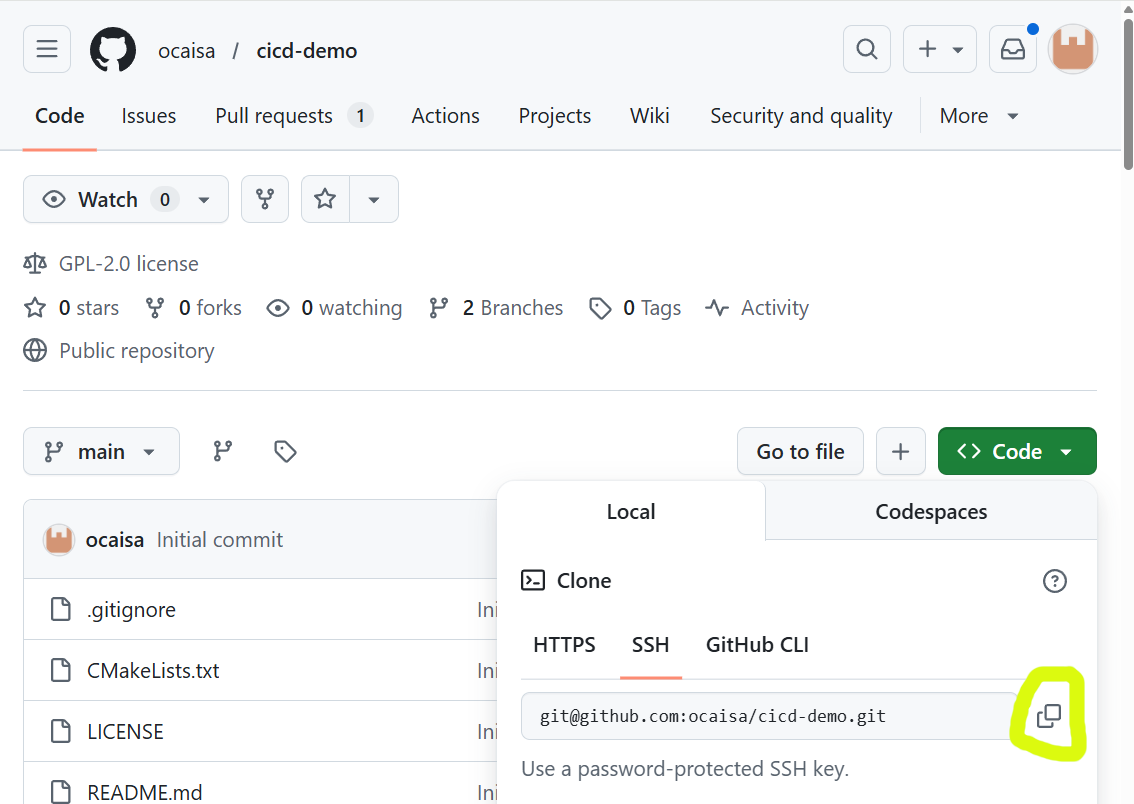

For example, for the repository shown in the image, the full command is

git clone git@github.com:ocaisa/cicd-demo.git

Characteristics of our project¶

You can now explore the project, in particular taking a look at README.md.

$ cd cicd-demo # (1)!

$ ls
CMakeLists.txt  LICENSE  README.md  main.cpp  verify.cpp

$ cat README.md
# MPI + HDF5 Parallel Hello World

This project demonstrates parallel writing to an HDF5 file using **MPI** and the **HDF5 C++ API**, and includes a verification step to validate the written data.

## Overview

- `main.cpp`: Uses MPI to run multiple processes, each writing its rank to a shared HDF5 dataset (`rank_data`) in parallel using **collective I/O**.
- `verify.cpp`: Reads the resulting HDF5 file and verifies that each rank wrote the correct value.
- `CMakeLists.txt`: CMake configuration to build both programs and run tests.

## Requirements

- CMake ≥ 3.20
- MPI (e.g., OpenMPI or MPICH)
- HDF5 with C++ support
...

1. We assume here that you have already cloned your GitHub repository locally (and that you have named it cicd-demo)

Some characteristics of the project are

• Dependencies
  • The project can work in parallel across a large system, it uses MPI for communication, and HDF5 to write and read files in parallel. Since we need both of these when we run our software, these are often called runtime dependencies.
• Building
  • The project uses a build tool called CMake for building. Many software projects use this tool to help with the logistical challenge of building complex software.
  • This introduces another dependency on CMake itself which we only require during the building of the project. Such dependencies are often called build-time dependencies.
• Testing
• CMake has some features that allow for the running of tests that are included in our software project. This gives us an easy way to check both that our software runs, and that it gives correct results, without us needing to run and verify each check manually.

Loading our dependencies¶

We first need to provide our dependencies before we can build our project. We first need to ensure that EESSI is initialised:

source /cvmfs/software.eessi.io/versions/2025.06/init/lmod/bash

Now let's start with HDF5, and see if it is already available. We use module spider hdf5 to search for any available versions:

$ module spider hdf5

-------------------------------------------------------------------------------------------
  HDF5:
-------------------------------------------------------------------------------------------
    Description:
      HDF5 is a data model, library, and file format for storing and managing data. It
      supports an unlimited variety of datatypes, and is designed for flexible and
      efficient I/O and for high volume and complex data.

     Versions:
        HDF5/1.14.5-gompi-2024a
        HDF5/1.14.6-gompi-2025a
        HDF5/1.14.6-gompi-2025b

-------------------------------------------------------------------------------------------
  For detailed information about a specific "HDF5" package (including how to load the modules) use the module's full name.
  Note that names that have a trailing (E) are extensions provided by other modules.
  For example:

     $ module spider HDF5/1.14.6-gompi-2025b
-------------------------------------------------------------------------------------------

...

Having chose to try out HDF5/1.14.6-gompi-2025b, we can now load the module to make HDF5 available:

module load HDF5/1.14.6-gompi-2025b

After wards we can check what our environment currently looks like with

$ module list

Currently Loaded Modules:
  1) EESSI/2025.06                       11) libfabric/2.1.0-GCCcore-14.3.0
  2) GCCcore/14.3.0                      12) PMIx/5.0.8-GCCcore-14.3.0
  3) GCC/14.3.0                          13) PRRTE/3.0.11-GCCcore-14.3.0
  4) numactl/2.0.19-GCCcore-14.3.0       14) UCC/1.4.4-GCCcore-14.3.0
  5) libxml2/2.14.3-GCCcore-14.3.0       15) OpenMPI/5.0.8-GCC-14.3.0
  6) libpciaccess/0.18.1-GCCcore-14.3.0  16) gompi/2025b
  7) hwloc/2.12.1-GCCcore-14.3.0         17) libaec/1.1.4-GCCcore-14.3.0
  8) OpenSSL/3                           18) Perl/5.40.2-GCCcore-14.3.0
  9) libevent/2.1.12-GCCcore-14.3.0      19) HDF5/1.14.6-gompi-2025b

However, we are still missing our build-time dependency CMake. Can EESSI also provide that? Let's check with

module spider cmake

$ module spider Cmake

-------------------------------------------------------------------------------------------
  CMake:
-------------------------------------------------------------------------------------------
    Description:
      CMake, the cross-platform, open-source build system. CMake is a family of tools
      designed to build, test and package software.

     Versions:
        CMake/3.29.3-GCCcore-13.3.0
        CMake/3.31.3-GCCcore-14.2.0
        CMake/3.31.8-GCCcore-14.3.0
        CMake/4.0.3-GCCcore-14.3.0

-------------------------------------------------------------------------------------------
  For detailed information about a specific "CMake" package (including how to load the modules) use the module's full name.
  Note that names that have a trailing (E) are extensions provided by other modules.
  For example:

     $ module spider CMake/4.0.3-GCCcore-14.3.0
-------------------------------------------------------------------------------------------

        CMake/3.31.8-GCCcore-14.3.0
        CMake/4.0.3-GCCcore-14.3.0

module load CMake/4.0.3-GCCcore-14.3.0

With this module loaded, we now have all both our build-time and runtime dependencies satisfied, and can proceed to build our project.

First attempt at building and testing our project¶

If we take a look at the build instructions inside our README.md, the build instructions are not too lengthy, and follow a very common CMake pattern:

mkdir build # (1)!
cd build
cmake ..  # (2)!
make  # (3)!

1. Make a directory to contain our build
2. Configure our build using the CMake files shipped in the project
3. Build the project with make

If we try this, we get output similar to

{EESSI/2025.06} $ mkdir build

{EESSI/2025.06} $ cd build

{EESSI/2025.06} $ cmake ..
-- The CXX compiler identification is GNU 14.3.0
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/GCCcore/14.3.0/bin/c++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Found MPI_CXX: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/lib/libmpi.so (found version "3.1")
-- Found MPI: TRUE (found version "3.1")
-- The C compiler identification is GNU 14.3.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/GCCcore/14.3.0/bin/cc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Found HDF5: hdf5_cpp-shared (found version "1.14.6") found components: CXX
-- Configuring done (4.5s)
-- Generating done (0.0s)
-- Build files have been written to: /home/ocaisa/EESSI/cicd-demo/build

{EESSI/2025.06} $ make
[ 25%] Building CXX object CMakeFiles/hello_mpi_hdf5.dir/main.cpp.o
[ 50%] Linking CXX executable hello_mpi_hdf5
[ 50%] Built target hello_mpi_hdf5
[ 75%] Building CXX object CMakeFiles/verify_hdf5.dir/verify.cpp.o
[100%] Linking CXX executable verify_hdf5
[100%] Built target verify_hdf5

We're not done yet though!

It's great that the project built, but we haven't tested it yet. Going back to our README.md, we find the command we need to run the tests:

ctest --output-on-failure --verbose

Our final step is to run that command and ensure it succeeds. If you do that you should see output similar to

{EESSI/2025.06} $ ctest --output-on-failure --verbose
UpdateCTestConfiguration  from :/home/ocaisa/EESSI/cicd-demo/build/DartConfiguration.tcl
Test project /home/ocaisa/EESSI/cicd-demo/build
Constructing a list of tests
Done constructing a list of tests
Updating test list for fixtures
Added 0 tests to meet fixture requirements
Checking test dependency graph...
Checking test dependency graph end
test 1
    Start 1: RunMPIProgram

1: Test command: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/bin/mpiexec "-n" "4" "/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5"
1: Working Directory: /home/ocaisa/EESSI/cicd-demo/build
1: Test timeout computed to be: 9999879
1: /home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
1: /home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
1: /home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
1: /home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
1: --------------------------------------------------------------------------
1: prterun detected that one or more processes exited with non-zero status,
1: thus causing the job to be terminated. The first process to do so was:
1:
1:    Process name: [prterun-aoc-laptop-257891@1,3]
1:    Exit code:    127
1: --------------------------------------------------------------------------
1/2 Test #1: RunMPIProgram ....................***Failed    0.53 sec
/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
--------------------------------------------------------------------------
prterun detected that one or more processes exited with non-zero status,
thus causing the job to be terminated. The first process to do so was:

   Process name: [prterun-aoc-laptop-257891@1,3]
   Exit code:    127
--------------------------------------------------------------------------

test 2
    Start 2: VerifyHDF5Output

2: Test command: /home/ocaisa/EESSI/cicd-demo/build/verify_hdf5
2: Working Directory: /home/ocaisa/EESSI/cicd-demo/build
2: Test timeout computed to be: 9999879
2: /home/ocaisa/EESSI/cicd-demo/build/verify_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory
2/2 Test #2: VerifyHDF5Output .................***Failed    0.00 sec
/home/ocaisa/EESSI/cicd-demo/build/verify_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory


0% tests passed, 2 tests failed out of 2

Total Test time (real) =   0.54 sec

The following tests FAILED:
          1 - RunMPIProgram (Failed)
          2 - VerifyHDF5Output (Failed)
Errors while running CTest

All our tests failed!

Our output is full of errors like

/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5: error while loading shared libraries: libhdf5_cpp.so.310: cannot open shared object file: No such file or directory

Why did our build fail the tests when using EESSI?¶

To understand where the failure is coming from, we first need to understand what actually happens when we try to run a program on a computer. Our applications that we want to run take up space in memory, but many of them share parts of their dependency tree. For example, every application built with the GCC compiler, require the GCC compiler runtime libraries. Having every executable we run include a copy of that library internally in is a waste of space in memory, since all programs need exactly the same libraries.

To save space (and to allow us to upgrade the libraries), dynamically linked programs use shared libraries. A runtime loader in Linux (often called the dynamic linker/loader) is responsible for loading shared libraries required by a program when it starts. It resolves symbols and links the program to the correct library functions and variables at runtime. This allows multiple programs to share the same libraries in memory and enables libraries to be updated independently of applications.

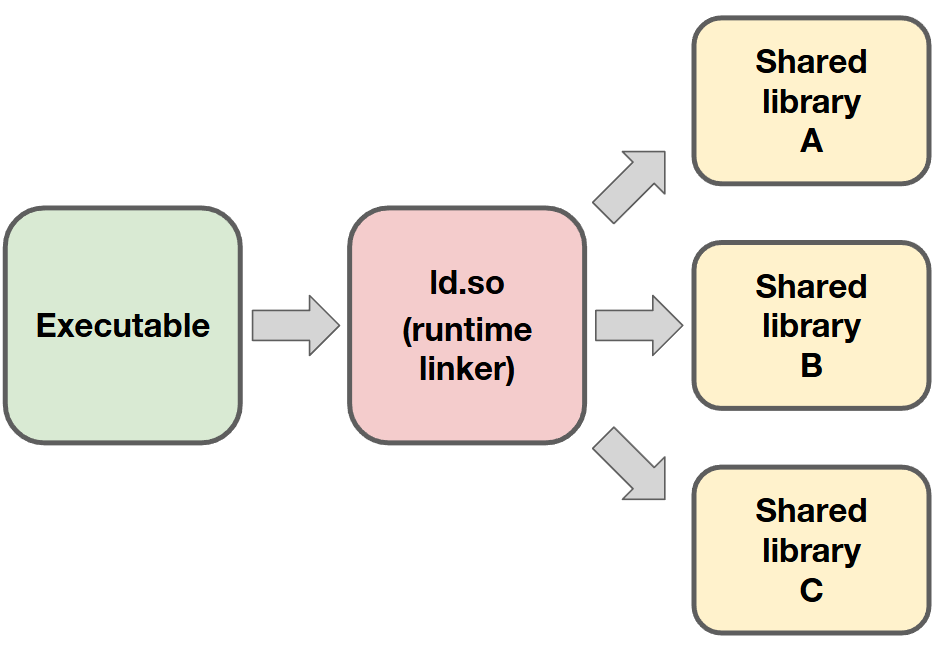

The runtime loader is perhaps the most critical part of any operating system, as it controls the behaviour of most applications on any system.

What affects the behaviour of the runtime loader?¶

There are a few things that can impact the behaviour of the runtime loader:

• Hints in the environment about where to look for our shared libraries. LD_LIBRARY_PATH in particular is typically used to influence the behaviour of the runtime loader.
• Information can be stored directly in the library/application that you are trying to load. At compile time, we can store information about the paths to search when looking for libraries. This can be done in such a way that it can be overridden by LD_LIBRARY_PATH (RUNPATH linking), or in a way where LD_LIBRARY_PATH has no influence (RPATH linking).
• The runtime loader also has default locations it searches for libraries. These are used as a last resort.

For a given application or library, we can inspect what the runtime loader will resolve the shared libraries to using the command ldd. For our failed build, we can do this on the binary hello_mpi_hdf5, which was created by our build (and mentioned in some of our errors):

{EESSI/2025.06} $ ldd hello_mpi_hdf5
        linux-vdso.so.1 (0x0000f1bedad95000)
        libmpi.so.40 => /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/lib/libmpi.so.40 (0x0000f1bedaa10000)
        libhdf5_cpp.so.310 => not found
        libhdf5.so.310 => not found
        ...

EESSI ships its own runtime loader¶

The reason EESSI is like a container is because when it builds and ships applications and libraries, it tells them to use the runtime loader from the EESSI compatibility layer, not from the local operating system. This is what gives us independence from the underlying operating system.

However, because EESSI needs to live side-by-side with the underlying operating system, we cannot use LD_LIBRARY_PATH to help the loader to find libraries (as setting this also affects the behaviour of the host runtime loader, which may unintentionally break applications coming from the host). EESSI therefore must use RPATH-linking for all of the programs it ships in the software layer.

We can inspect the RPATH information encoded in a library using a tool called patchelf (which is shipped in EESSI):

{EESSI/2025.06} $ patchelf --print-rpath hello_mpi_hdf5
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/lib

To inject this information inside the binary we need to instruct the compiler that this information is required when we build our application. This is very tedious though as it requires lot of compiler flags when there are lots of dependencies, and when we are building lots of applications with lots of different dependencies it gets very complex quickly. Instead, we use compiler wrappers to automatically inject the required flags into the compiler command based on the modules we have loaded at the time we do the compilation.

This is done by default for everything that EESSI itself ships, but when building software manually with EESSI we need to somehow activate these wrappers. That is where the EESSI buildenv module comes in.

Using the buildenv module¶

EESSI provides the compiler wrappers needed to inject the RPATH information automatically into the things that are compiled. It does this via module file created for this purpose: buildenv. The buildenv module also sets environment variables that are used by build tools such as CMake and Autotools, which should help applications respect that they should prioritise the dependencies that come from EESSI.

We can search for the available versions of buildenv using module spider:

{EESSI/2025.06} $ module spider buildenv

------------------------------------------------------------------------
  buildenv:
------------------------------------------------------------------------
    Description:
      This module sets a group of environment variables for compilers,
      linkers, maths libraries, etc., that you can use to easily
      transition between toolchains when building your software. To
      query the variables being set please use: module show <this
      module name>

     Versions:
        buildenv/default-foss-2024a
        buildenv/default-foss-2025a
        buildenv/default-foss-2025b

Looking at the patterns for the modules that we already have in our environment, we can guess that the version that is relevant for us is buildenv/default-foss-2025b. We can explore what the module actually does with:

module show buildenv/default-foss-2025b

This produces a lot of information about environment variables being set. Let's look in detail at some specific examples:

...
prepend_path("PATH","/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/buildenv/default-foss-2025b/bin/rpath_wrappers/gxx_wrapper")
...
pushenv("CXXFLAGS","-O2 -ftree-vectorize -mcpu=native -fno-math-errno")
...
pushenv("MPICXX","mpicxx")
...

Building our software project (Part 2)¶

Let's now load the buildenv module (it's not a dependency of our package, it's a build-time dependency coming from our use of EESSI):

module load buildenv/default-foss-2025b

We have seen that our application was missing RPATH information, so we need to restart our build process from scratch:

{EESSI/2025.06} $ cd ..  # (1)!

{EESSI/2025.06} $ ls  # (2)!
CMakeLists.txt  LICENSE  README.md  build  main.cpp  verify.cpp

{EESSI/2025.06} $ rm -r build  # (3)!
rm: remove write-protected regular file 'build/CMakeFiles/4.0.3/CMakeSystem.cmake'? y
rm: remove write-protected regular file 'build/CMakeFiles/4.0.3/CMakeCXXCompiler.cmake'? y
rm: remove write-protected regular file 'build/CMakeFiles/4.0.3/CMakeCCompiler.cmake'? y

{EESSI/2025.06} $ mkdir build

{EESSI/2025.06} $ cd  build

{EESSI/2025.06} $ cmake ..
-- The CXX compiler identification is GNU 14.3.0
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/buildenv/default-foss-2025b/bin/rpath_wrappers/gxx_wrapper/g++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Found MPI_CXX: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/lib/libmpi.so (found version "3.1")
-- Found MPI: TRUE (found version "3.1")
-- The C compiler identification is GNU 14.3.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/buildenv/default-foss-2025b/bin/rpath_wrappers/gcc_wrapper/gcc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Found HDF5: hdf5_cpp-shared (found version "1.14.6") found components: CXX
-- Configuring done (13.0s)
-- Generating done (0.0s)
-- Build files have been written to: /home/ocaisa/EESSI/cicd-demo/build
{EESSI/2025.06} ocaisa@~/EESSI/cicd-demo/build(main)$ make
[ 25%] Building CXX object CMakeFiles/hello_mpi_hdf5.dir/main.cpp.o
[ 50%] Linking CXX executable hello_mpi_hdf5
[ 50%] Built target hello_mpi_hdf5
[ 75%] Building CXX object CMakeFiles/verify_hdf5.dir/verify.cpp.o
[100%] Linking CXX executable verify_hdf5
[100%] Built target verify_hdf5

1. We were in the build directory and need to go up a directory.
2. Let's check we are back in the right place at the root directory for our project.
3. Completely remove the build directory, some files were read-only so they require explicit permissions to remove.

There is a very relevant change in the output here, we now see that CMake is detecting the compiler wrappers coming from our buildenv module as the compiler. We can inspect the changes that this makes to the RPATH information in our executable hello_mpi_hdf5 using patchelf (but since I know this generates a lot of information I will process the output a little for readability):

{EESSI/2025.06} $ patchelf --print-rpath hello_mpi_hdf5 | tr ":" "\n"
/cvmfs/software.eessi.io/host_injections/2025.06/software/linux/aarch64/neoverse_n1/rpath_overrides/OpenMPI/system/lib
/cvmfs/software.eessi.io/host_injections/2025.06/software/linux/aarch64/neoverse_n1/rpath_overrides/OpenMPI/system/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/buildenv/default-foss-2025b/lib
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/buildenv/default-foss-2025b/lib64
$ORIGIN
$ORIGIN/../lib
$ORIGIN/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/ScaLAPACK/2.2.2-gompi-2025b-fb/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/FFTW.MPI/3.3.10-gompi-2025b/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/FFTW/3.3.10-GCC-14.3.0/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/FlexiBLAS/3.4.5-GCC-14.3.0/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/GCCcore/14.3.0/lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/GCCcore/14.3.0/lib
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenBLAS/0.3.30-GCC-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libarchive/3.8.1-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/zstd/1.5.7-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/lz4/1.10.0-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/cURL/8.14.1-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libpsl/0.21.5-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libunistring/1.3-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libiconv/1.18-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libidn2/2.3.8-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/HDF5/1.14.6-gompi-2025b/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/Perl/5.40.2-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libaec/1.1.4-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/UCC/1.4.4-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/PRRTE/3.0.11-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/PMIx/5.0.8-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libfabric/2.1.0-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/UCX/1.19.0-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libevent/2.1.12-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenSSL/3/lib64/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/hwloc/2.12.1-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libpciaccess/0.18.1-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/libxml2/2.14.3-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/numactl/2.0.19-GCCcore-14.3.0/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/GCCcore/14.3.0/lib/gcc/aarch64-unknown-linux-gnu/14.3.0
/cvmfs/software.eessi.io/versions/2025.06/compat/linux/aarch64/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/compat/linux/aarch64/usr/lib/../lib64
/cvmfs/software.eessi.io/versions/2025.06/compat/linux/aarch64/lib
/cvmfs/software.eessi.io/versions/2025.06/compat/linux/aarch64/usr/lib
/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/lib

Wow, that is a lot of paths to search! In this long list we can see the location of the HDF5 libraries. If we now check our binary with ldd

ldd hello_mpi_hdf5

For the final check then we rerun our test command

{EESSI/2025.06} $ ctest --output-on-failure --verbose
UpdateCTestConfiguration  from :/home/ocaisa/EESSI/cicd-demo/build/DartConfiguration.tcl
Test project /home/ocaisa/EESSI/cicd-demo/build
Constructing a list of tests
Done constructing a list of tests
Updating test list for fixtures
Added 0 tests to meet fixture requirements
Checking test dependency graph...
Checking test dependency graph end
test 1
    Start 1: RunMPIProgram

1: Test command: /cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/OpenMPI/5.0.8-GCC-14.3.0/bin/mpiexec "-n" "4" "/home/ocaisa/EESSI/cicd-demo/build/hello_mpi_hdf5"
1: Working Directory: /home/ocaisa/EESSI/cicd-demo/build
1: Test timeout computed to be: 9999879
1: Rank 2 wrote value 2 to file 'parallel_hello.h5'
1: Rank 0 wrote value 0 to file 'parallel_hello.h5'
1: Rank 1 wrote value 1 to file 'parallel_hello.h5'
1: Rank 3 wrote value 3 to file 'parallel_hello.h5'
1/2 Test #1: RunMPIProgram ....................   Passed    1.93 sec
test 2
    Start 2: VerifyHDF5Output

2: Test command: /home/ocaisa/EESSI/cicd-demo/build/verify_hdf5
2: Working Directory: /home/ocaisa/EESSI/cicd-demo/build
2: Test timeout computed to be: 9999878
2: Verifying dataset: 0 1 2 3
2: Verification successful.
2/2 Test #2: VerifyHDF5Output .................   Passed    0.09 sec

100% tests passed, 0 tests failed out of 2

Total Test time (real) =   2.03 sec

Our tests now pass! Not only that, since we ended up doing a detailed inspection of our binaries we have explicitly verified that the our package is using EESSI for all it's dependencies and is using the runtime loader provided by EESSI.

Extending EESSI using EESSI-extend¶

While the buildenv may allow many applications to be built directly on top of EESSI, it cannot work miracles ( ). Building our own package is one thing, but building the dependency tree for our package means potentially dealing with complex cases which may easily fall through the cracks in this approach. Unlike our own package where we are very familiar with the internal workings, dealing with external dependencies can actually consume a lot more effort because solving any problems requires understanding how the dependency package is built in the first place. Such issues are the reason that tools such as EasyBuild, Spack, GuixHPC, etc., exist and are used heavily in the HPC space.

In EESSI, EasyBuild is used exclusively to deliver packages in the software layer. EasyBuild has hundreds of configuration options though, and the shared environment of EESSI means that we need everyone to be using a consistent configuration of EasyBuild so that we all start from same base. There are multiple ways that one can configure EasyBuild, one of which is by using environment variables. Since environment modules are an exact match for this case, it is convenient (and consistent with our general approach) to use an environment module to configure EasyBuild for use with EESSI. For the current version of EESSI that we have loaded, the module is called EESSI-extend/2025.06-easybuild. We can learn about EESSI-extend with

module show EESSI-extend/2025.06-easybuild

Before we experiment with EESSI-extend, let's clean out our environment and start again

module purge  # (1)!
module load EESSI/2025.06  # (2)!
module load EESSI-extend/2025.06-easybuild

1. Completely empty the environment of all modules.
2. Whether or not we need we need to reload the EESSI module itself depends a bit on how EESSI was initialised.

Using EESSI-extend to install a package with EasyBuild¶

First, we need something that we want to install. For the purposes of this tutorial we are going to use a build recipe (or easyconfig) for EasyBuild targeting the package we have been working with to date.

easyblock = 'CMakeMake'

name = 'cicd-demo'
version = '0.1.0'

homepage = 'https://github.com/EESSI/cicd-demo'
description = """
 Simple project that writes in parallel via HDF5
"""

toolchain = {'name': 'gompi', 'version': '2025b'}

github_account = 'EESSI'
source_urls = ['https://github.com/%(github_account)s/%(name)s/archive/refs/tags/']

sources = ['v%(version)s.tar.gz']
checksums = ['02a1e2fa4f0f08c80da487274ad278c5a99491500936012e8703d93b8373c58d']

builddependencies = [
    ('CMake', '4.0.3'),
]
dependencies = [
    ('HDF5', '1.14.6'),
]

runtest = True

sanity_check_paths = {
    'files': ['bin/hello_mpi_hdf5'],
    'dirs': [],
}

moduleclass = 'devel'

We can now take this recipe and use it with the EasyBuild command eb

eb cicd-demo-0.1.0-gompi-2025b.eb

This will give a lot of output as EasyBuild goes through all the various steps it takes when performing an installation. We won't go through it all, but we can look for specific parts that matches what we carried out ourselves earlier.

...
  >> loading modules for build dependencies:
  >>  * CMake/4.0.3-GCCcore-14.3.0
  >> loading modules for (runtime) dependencies:
  >>  * HDF5/1.14.6-gompi-2025b
  >> defining build environment for gompi/2025b toolchain
...

...
== configuring...
== Running pre-configure hook...
  >> running shell command:
        cmake  -DCMAKE_INSTALL_PREFIX=/home/ocaisa/eessi/versions/2025.06/software/linux/aarch64/neoverse_n1/software/cicd-demo/0.1.0-gompi-2025b -DCMAKE_MESSAGE_LOG_LEVEL=STATUS
-DCMAKE_BUILD_TYPE=Release -DCMAKE_INSTALL_LIBDIR:PATH=lib -DCMAKE_SYSROOT=/cvmfs/software.eessi.io/versions/2025.06/compat/linux/aarch64
-DCMAKE_C_COMPILER=/tmp/eb-4yjooryq/tmpky84fm88/rpath_wrappers/gcc_wrapper/gcc -DCMAKE_CXX_COMPILER=/tmp/eb-4yjooryq/tmpky84fm88/rpath_wrappers/gxx_wrapper/g++
-DCMAKE_Fortran_COMPILER=/tmp/eb-4yjooryq/tmpky84fm88/rpath_wrappers/gfortran_wrapper/gfortran -DCMAKE_VERBOSE_MAKEFILE=ON -DCMAKE_FIND_USE_PACKAGE_REGISTRY=OFF
/tmp/ocaisa/easybuild/build/cicddemo/0.1.0/gompi-2025b/cicd-demo-0.1.0
        [started at: 2026-06-05 13:33:44]
        [working dir: /tmp/ocaisa/easybuild/build/cicddemo/0.1.0/gompi-2025b/easybuild_obj]
        [output and state saved to /tmp/eb-4yjooryq/run-shell-cmd-output/cmake-rajuu1qd]
...

...
== building...
  >> running shell command:
        make  -j 12
...

...
== testing...
== Running pre-test hook...
  >> running shell command:
        ctest --no-tests=error
...

We can now load the module file for our package and run it as if it was coming from EESSI itself

{EESSI/2025.06} $ module load cicd-demo/0.1.0-gompi-2025b

{EESSI/2025.06} $ which hello_mpi_hdf5
/home/user/eessi/versions/2025.06/software/linux/aarch64/neoverse_n1/software/cicd-demo/0.1.0-gompi-2025b/bin/hello_mpi_hdf5

{EESSI/2025.06} $ mpirun -n 2 hello_mpi_hdf5
Rank 0 wrote value 0 to file 'parallel_hello.h5'
Rank 1 wrote value 1 to file 'parallel_hello.h5'

{EESSI/2025.06} ocaisa@~/EESSI/eessi-tutorial(main)$ module unload EESSI-extend

Inactive Modules:  # (1)!
  1) GCC/14.3.0                   5) OpenSSL/3                       9) UCC/1.4.4-GCCcore-14.3.0       13) hwloc/2.12.1-GCCcore-14.3.0       17) libpciaccess/0.18.1-GCCcore-14.3.0
  2) GCCcore/14.3.0               6) PMIx/5.0.8-GCCcore-14.3.0      10) UCX/1.19.0-GCCcore-14.3.0      14) libaec/1.1.4-GCCcore-14.3.0       18) libxml2/2.14.3-GCCcore-14.3.0
  3) HDF5/1.14.6-gompi-2025b      7) PRRTE/3.0.11-GCCcore-14.3.0    11) cicd-demo/0.1.0-gompi-2025b    15) libevent/2.1.12-GCCcore-14.3.0    19) numactl/2.0.19-GCCcore-14.3.0
  4) OpenMPI/5.0.8-GCC-14.3.0     8) Perl/5.40.2-GCCcore-14.3.0     12) gompi/2025b                    16) libfabric/2.1.0-GCCcore-14.3.0

{EESSI/2025.06} ocaisa@~/EESSI/eessi-tutorial(main)$ which hello_mpi_hdf5  # (2)!
which: no hello_mpi_hdf5 in (/cvmfs/software.eessi.io/versions/2025.06/software/linux/aarch64/neoverse_n1/software/EasyBuild/5.3.0/bin:...)

{EESSI/2025.06} ocaisa@~/EESSI/eessi-tutorial(main)$ module load EESSI-extend/2025.06-easybuild
-- Using /tmp/$USER as a temporary working directory for installations, you can override this by setting the environment variable WORKING_DIR and reloading the module (e.g., /dev/shm
is a common option)
Configuring for use of EESSI_USER_INSTALL under /home/ocaisa/eessi
-- To create installations for EESSI, you _must_ have write permissions to /home/ocaisa/eessi/versions/2025.06/software/linux/aarch64/neoverse_n1
-- You may wish to configure a sources directory for EasyBuild (for example, via setting the environment variable EASYBUILD_SOURCEPATH) to allow you to reuse existing sources for
packages.

Activating Modules:  # (3)!
  1) GCC/14.3.0                   5) OpenSSL/3                       9) UCC/1.4.4-GCCcore-14.3.0       13) hwloc/2.12.1-GCCcore-14.3.0       17) libpciaccess/0.18.1-GCCcore-14.3.0
  2) GCCcore/14.3.0               6) PMIx/5.0.8-GCCcore-14.3.0      10) UCX/1.19.0-GCCcore-14.3.0      14) libaec/1.1.4-GCCcore-14.3.0       18) libxml2/2.14.3-GCCcore-14.3.0
  3) HDF5/1.14.6-gompi-2025b      7) PRRTE/3.0.11-GCCcore-14.3.0    11) cicd-demo/0.1.0-gompi-2025b    15) libevent/2.1.12-GCCcore-14.3.0    19) numactl/2.0.19-GCCcore-14.3.0
  4) OpenMPI/5.0.8-GCC-14.3.0     8) Perl/5.40.2-GCCcore-14.3.0     12) gompi/2025b                    16) libfabric/2.1.0-GCCcore-14.3.0

{EESSI/2025.06} ocaisa@~/EESSI/eessi-tutorial(main)$ which hello_mpi_hdf5  # (4)!
/home/user/eessi/versions/2025.06/software/linux/aarch64/neoverse_n1/software/cicd-demo/0.1.0-gompi-2025b/bin/hello_mpi_hdf5

Going further with EESSI-extend¶

We have seen that we use EESSI-extend to install an EasyBuild recipe, replicating the approach taken by EESSI itself when installing packages. EasyBuild has over support for almost 3000 software packages, and thousands of extensions for things like R and Python. If you want to explore whether EasyBuild already has support for a package you are interested in you can use, for example,

eb --search openfoam

eb --missing OpenFOAM-v2506-foss-2025b.eb

We then even try to proceed with the installation, including building the dependencies

eb --robot OpenFOAM-v2506-foss-2025b.eb
